Description

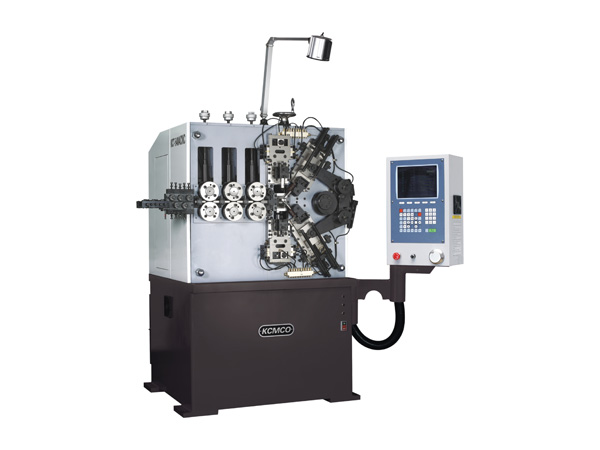

KCT-540 5 Axis CNC High-speed spring coiling machine, referred to as the 540-type computer compression spring machine, processing line diameter is 1.6-4.5mm, suitable for processing a variety of products such as precision compression spring, compression spring, convex/concave spring, damping spring, automobile spring, die spring, spring and spring rail tube etc..
Parameters
| 機 型 | Model | KCT-540 |
| 軸 數 | Axis Count | 5 軸 |
| 加工線徑 | Wire Size Range | φ1.6-4.5mm |
| 最大彈簧外徑 | Max Outside Diameter | φ80mm |
| 最大送線長度 | Max Feeding Length | 無限（Unlimited） |
| 最大送線速度 | Max Feed Speed | 96m/min |
| 送線輪組數 | Wire Feeding Wheel Count | 3 pairs(組) |
| 旋繞比 | Spring Index | 3 |
| 送線伺服電機 | Feeding Servo Motor | 5.5kw |
| 凸輪伺服電機 | Cam Servo Motor | 2.7kw |
| 切刀伺服電機 | Cutter Servo Motor | 2.7kw*2 |
| 螺距伺服電機 | Pitch Servo Motor | 1.5kw |
| 機器尺寸 | Dimension(LxWxH) | 1032x1048x1674mm |
| 機器重量 | Weight | 1900kg |
| 電 源 | Power AC | 3-380VAC 50HZ |
Our company's KCT-540 5 Axis CNC High-speed spring coiling machine adopts computer control system, Taiwan imported from Japan SANYO servo motor a high-speed five axis CNC coiling machine servo motor and high precision bearing structure, the standard models for five axes, free spool, camshaft, upper/under cutter axis and pitch axis. The shaft can operate independently or with synchronous operation, forming speed, stable performance and high accuracy. Among them, the KCT-540 computer compression spring machine of the cutter, and part of the independent spin off cutter shaft, can realize the direct effect on cutting, cutting and cutting pendulum cut from different angles; the pitch axis is the push rod spacing knife models increases, not only more convenient products of spring forming machine, save debugging time and wire cost, but also can complete the spring more difficult requirements.
